VHV ceiling fan

High performance and innovative design

  • Adjustable airfoil deflectors optimize air throw distance and direction
  • Transfer electrical energy into air energy in a focused air pattern
  • Performance enhancing intake fiberglass cone
  • Balanced 72” heavy duty corrosion resistant 6 paddle aluminium blades
  • 80 000 CFM (135 925 M3/H) at high speed including entrained air and 36 CFM/Watt (61 M3/H)

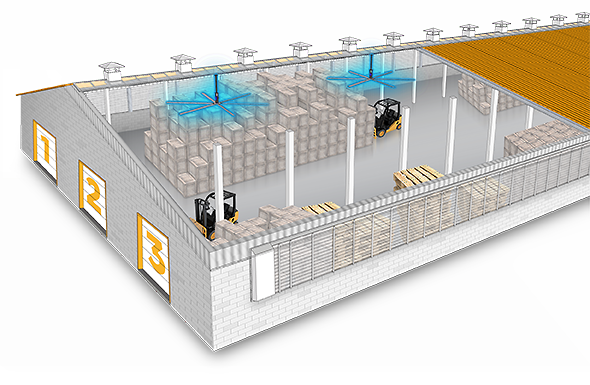

  • De-stratisfies air on low speed covering over 15 000 square feet (1 390 square meters) while only using 300 watts of power
  • High speed creating 1 200 FPM (22 km/h) of velocity under the fan and 300 FPM (5.5 km/h) at a distance of 75 feet (22.86 m) on both discharge sides or a total of 5 250 square feet (488 square meters) of cooling area
  • Optional variable frequency drive allows you a smooth speed adjustment from 322 RPM down to 80 RPM. Fan power consumption reduces with speed
  • Heavy galvanized motor mount straightens the air as it is propelled through the venturi and throws the air efficiently over the airfoil deflectors
  • Extremely quiet operation on all speeds

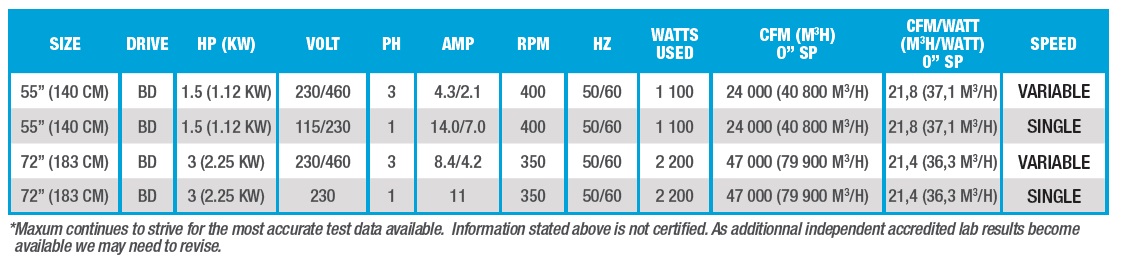

Technical specifications

  • Weight 375 lbs (170 kg) fully assembled
  • Motor is 3 HP or 2.2 KW on high and 0.3 KW on low 230/460V, 3 phases
  • Belt drive runs 322 RPM on high and 50 RPM on low
  • Throws air 100’ (30.48 m) on both sides for a total floor coverage of 200’ X 35’ (60.96 X 10.67 m)

Features :

  • Corrosion resistant fiberglass housing
  • Heavy duty pulley and bearing assembly
  • Maintenance free motor, approved U-CSA-C or CE and are 50/60HZ
  • Quick Change Belt
  • Can be mounted on steel post, building column or suspended from the ceiling (all optional mounts)
  • Optional variable frequency drive
  • 6 directional air flow deflectors
  • Balanced 72’’ (182 cm) heavy duty corrosion resistant 6 paddle aluminium blade
  • Shipped fully assembled, except for air foil deflectors
  • 3 year warranty on the motor and on the blades
  • One full year warranty on all other parts
